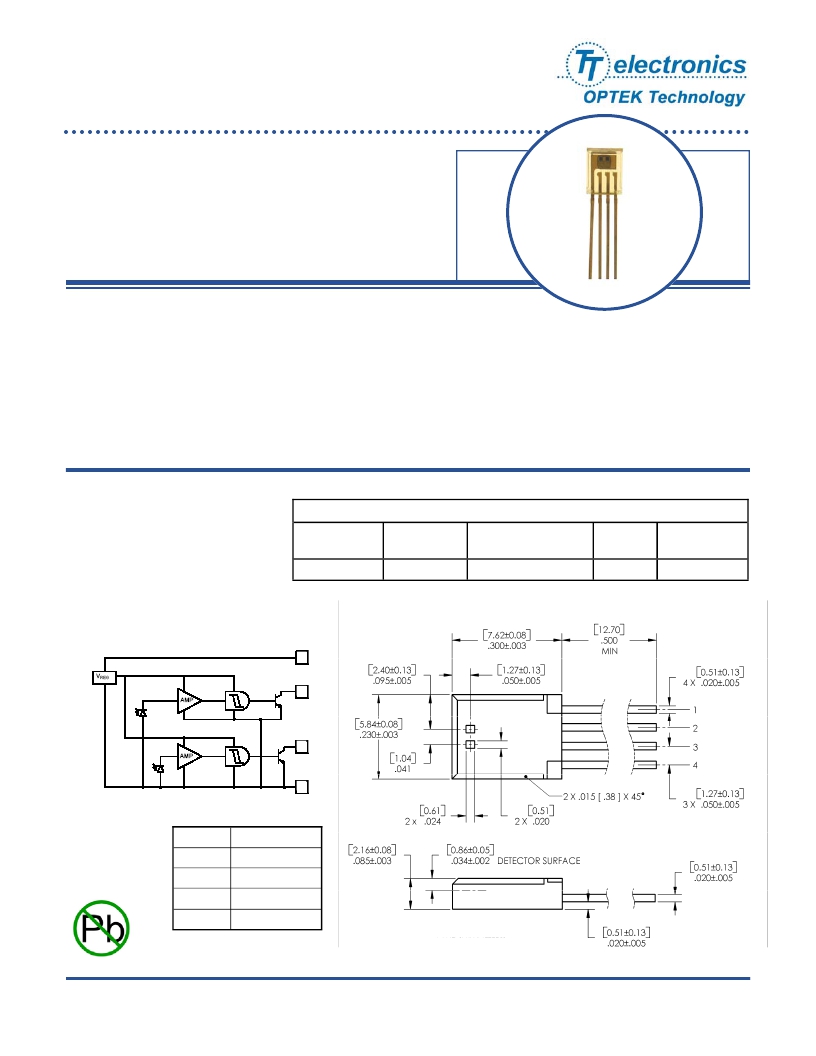

Dual Channel Photologic Encoder Detector
OPL583
Features:
? Two matched detectors with photolithographic control of relative
position
? Dual Photologic? circuitry in single package provides reduced
Product Photo Here
component count
? Open collector inverter output for flexibility of circuit interface
? Low cost plastic housing
Description:
OPL583 contains a monolithic integrated circuit that incorporates two independent photodiodes, two linear
amplifiers, two Schmitt trigger circuits and two output transistors which are all served by a common voltage
regulator. The fixed position of the two photodiodes and the matched characteristics of the two channels allow
considerable design flexibility. The outputs are TTL/LSTTL compatible and can drive up to 8 TTL loads over a
voltage range from 4.5 to 16 V.
Applications include linear and rotary encoders with resolutions determined by external apertures.
Applications:
? Rotary and Linear encoders
? Non-contact reflective object
sensor
Part Number
Ordering Information
Input Power E E V CC (V)
Photologic? (mW/cm 2 ) Min / Max Min / Max
Lead Length/
Spacing
?
?
Assembly line automation
Machine automation
OPL583
Dual Channel
0.05 / 0.25
4.5/16
0.50" / 0.05”
?
?
Machine safety
End of travel sensor
Vcc
Out B
Out A
GND
Pin #
1
2
3
4
Description
V CC
Out-B
Out-A
Ground
DIMENSIONS ARE IN:
[ MILLIMETERS]
INCHES
RoHS
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. — 1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Issue A 02/07
Page 1 of 3
